Material Hoist


Material Hoist

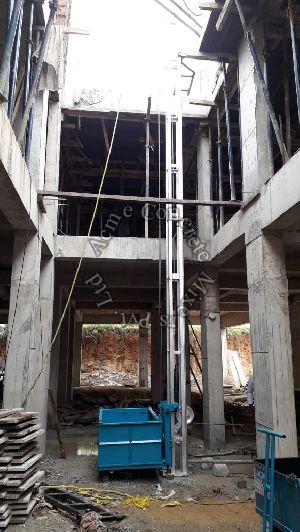

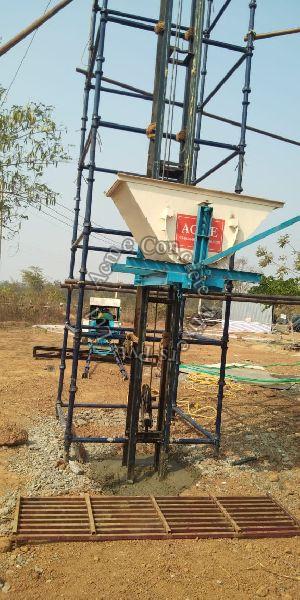

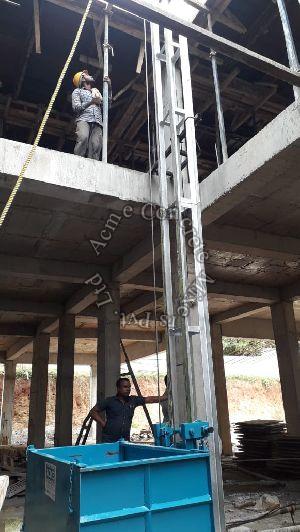

These are designed and intended mainly to transport people and material to different heights on the site. They are equipped with a vast number of safety features and are extremely reliable. Easy operation, hi-tech control panels and maximum energy savings are the salient features of these lifts. They are available in a wide capacity range – from 400 Kgs. to 2000 Kgs.

ModelSpeedo  (Specifications mentioned are for 1000 Kgs, 1500 Kgs and 2000 Kgs respectively :

  • Maximum Load – 1000 Kgs. and 1500 Kgs. and 2000 Kgs.
  • Cabin Dimensions (L X W X H)- (2000 X 1300 X 2100 mm.) and (2500 X 1300 X 2100 mm.) and (3000 X 1300 X 2100 mm.).
  • No. Of Persons – (10-12) Nos. and 18 Nos. and 22 Nos.
  • Speed – (22-25 Mt./Min.) and (28-30 Mt./Min.) and (28-30 Mt./Min.).
  • Power – (2 X 12.5 H.P. 3-Phase) and (2 X 12.5 H.P. 3-Phase) and (3 X 12.5 H.P. 3-Phase).
  • Mast Section – (Triangular / Square) and (Square) and (Square).
  • Column Dimensions (L X W X H)- (450 X 450 X 1508 mm.) and (650 X 650 X 1508 mm.) and (650 X 650 X 1508 mm.).
  • Mast Height – 1508 mm.
  • Anchoring Distance – (4500 mm) and (3000* or 6000 mm) and (6000 mm).
  • Max. Height – (80 Mt.) and (100* Mt. / 300 Mt.) and (300 Mt.).
